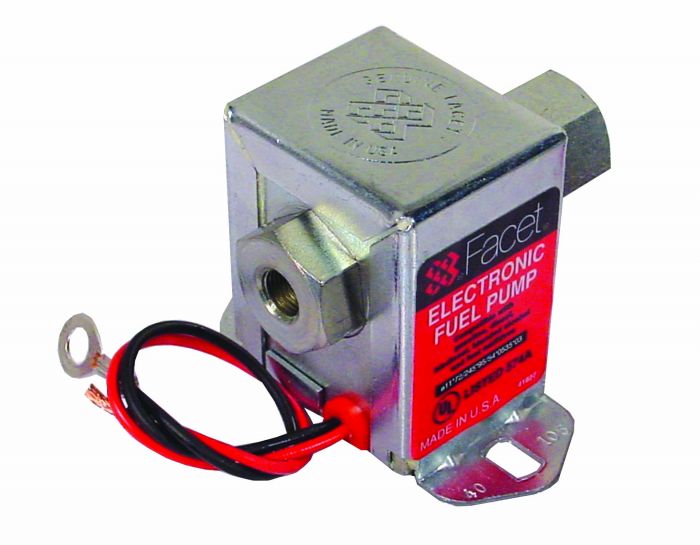

Facet Retail Solid State Fuel Pump

Description

These solid-state technology electronic fuel pumps provide outputs up to 132.5 liters/hour and .68 bar. Facet/Purolator Cube Fuel Pumps are self-priming with a dry lift capacity of 120 inches. Two universal models provide complete coverage for all low and high-pressure carburetor applications for cars, vans, RV’s, and light trucks, in addition to many diesel applications. All models of the Facet/Purolator Cube Fuel Pumps are compatible with gasoline, diesel, biodiesel, blended alcohol fuels, and fuel additives.



Specification:- Fast road

Pump:- 40289

Voltage:- 12v

Earth:- Neg

Pressure (Psi):- 4.5-7.0

Flow:- US Gallons/Hr 32

Dry Prime Height in Mtrs:- 0.6

Thread Size:- 1/8th nptf



Check Valve:- Yes

Operating Temperature:-  -40º F to +180° F



Average Run Time or MTBF:- 6000 hrs



Legal Requirements:- Certified & Complies With EEC 95/54 Requirements



Length:- 75mm



Height:- 60mm



Weight:-0.5kg



Please Note:- Designed and manufactured to automotive specification and not recommended for the maintenance of flight

JD FEP289SV
