Facet Red Top Cylindrical Fuel Pump Retail Kit (8mm Tails)

Description

This is a Facet Competition Red Top Retail Kit.

An industry standard for over 60 years, these lightweight compact pumps can be found in almost every conceivable application. With output ranges up to 170.3 liters/hour, .68 bar, these pumps will provide high-performance output for everything from racing cars to heavy duty agricultural and construction machinery. E10/E85/Diesel Compatible.

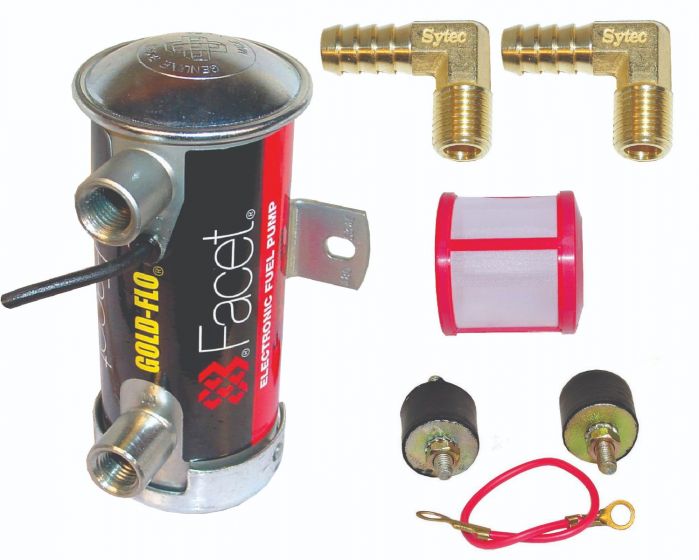

Contents

1x Pump (480532E)

2x 8mm 90 Degree Union (FPA9021A)

1x Facet Mounting Kit (FPA905)

1x Spare Filter (FPA908R)



Specification

Pump:-  480532E

Voltage:- 12v

Earth:- Neg

Pressure (Psi):- 6.0-8.0

Flow:- US Gallons/Hr 45

Dry Prime Height in Mtrs:- 0.6

Thread Size:- 1/4 nptf

Operating Temperature:- -40º to +180° F (all Models)



Legal Requirements:- Certified & Complies With EEC 95/54 Requirements



Length:-140mm



Diameter:- 54mm



Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal



Please Note:- Designed and manufactured to automotive specification and not recommended for the maintenance of flight

JD 480532-K
